| Machine Name |

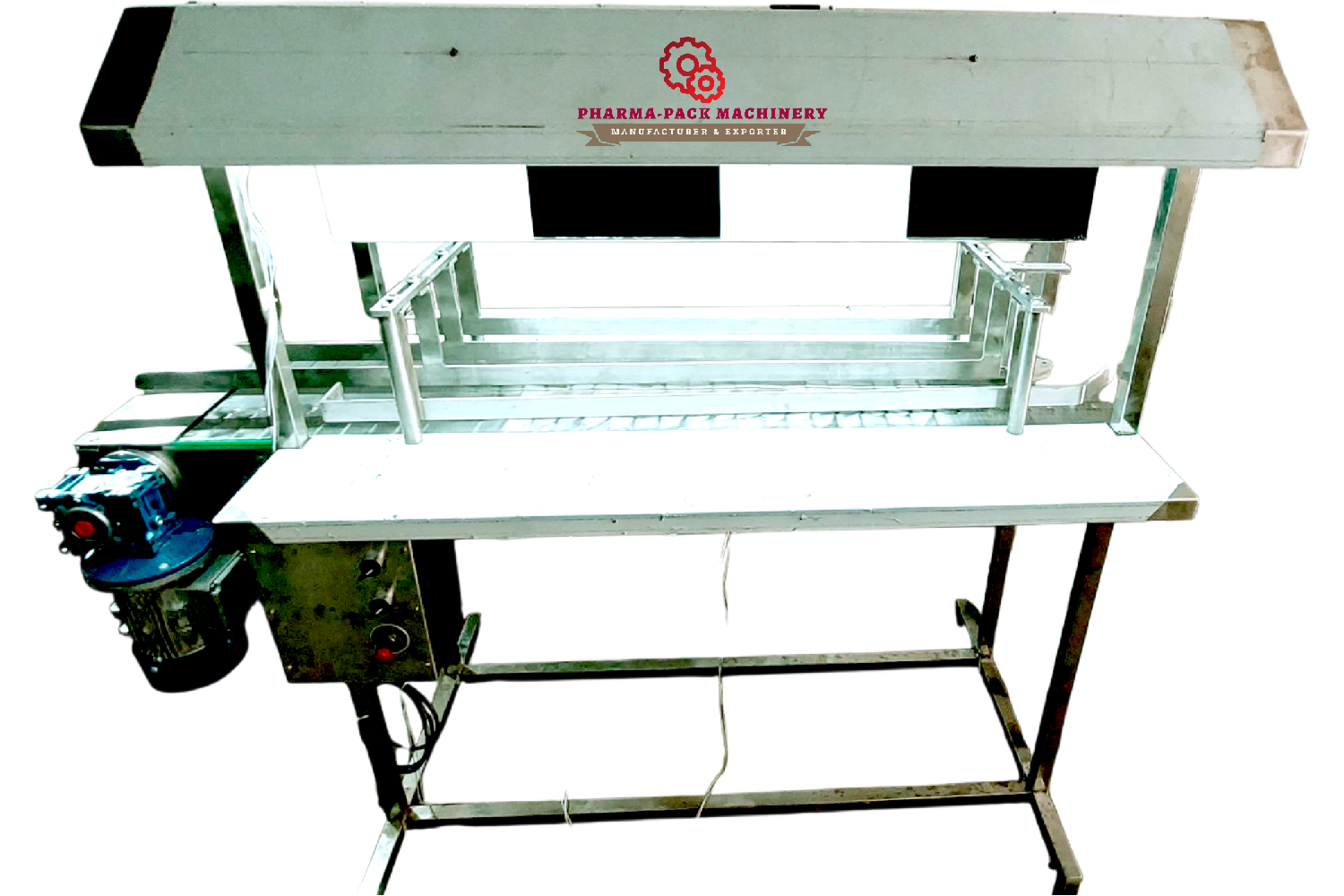

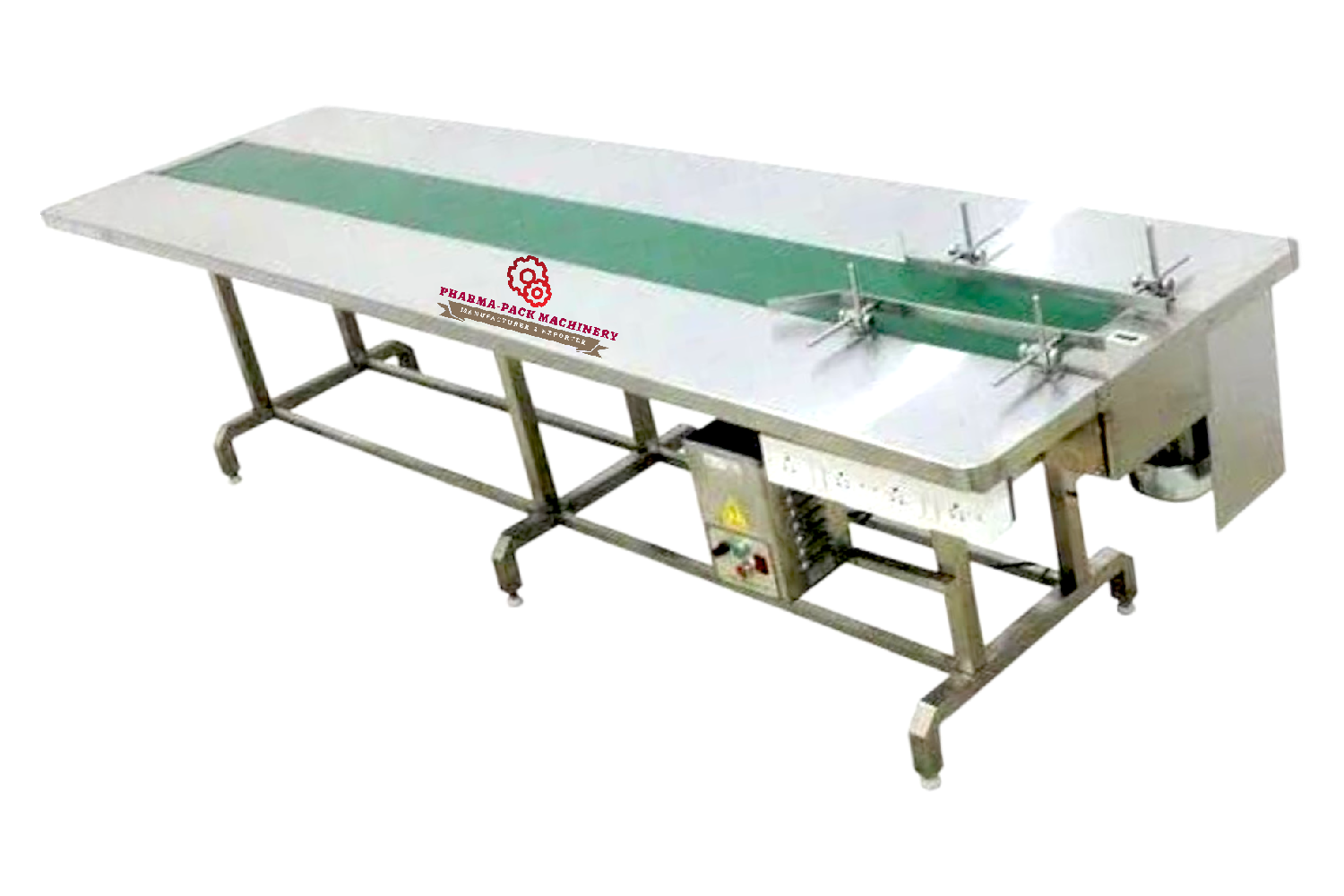

Visual Inspection Table |
| Application |
Manual inspection of products (e.g., vials, ampoules, tablets) |
| Structure Material |
SS 304 / SS 316 / Powder-Coated MS |
| Table Top |
Black & White Polycarbonate Sheet / Toughened Glass |
| Illumination |
Fluorescent / LED Tube Light (Shadow-free, Cool White) |
| Mirror |
Angular mirror for bottom view inspection |
| Conveyor Type |
S.S. Slat / Nylon Slat Conveyor |
| Conveyor Speed |
Adjustable - 5 to 15 MPM (Meters per Minute) |
| Motor |
0.25 HP / 0.5 HP (Make: Crompton / ABB / Equivalent) |
| Drive |
Variable Frequency Drive (VFD) for speed control |
| Inspection Area |
Approx. 4 - 6 feet (customizable) |
| Bottle Diameter Range |
10 mm - 100 mm (adjustable guides) |
| Power Supply |
230 V / 415 V, 50 Hz, Single or Three Phase |
| Operator Capacity |
1-4 persons (depending on length) |
| Height of Table |
800 - 850 mm (Adjustable legs) |
| Noise Level |
< 70 dB |
| Compliance |
cGMP, CE Mark (if applicable) |
| Optional Features |
UV Light, Magnifier, Vision Camera |
